High-speed vertical form-fill-seal candy packing machine. Ideal for loose candy, gummies, hard candy, and snacks. CE certified, multi-head weigher compatible, food-grade stainless steel

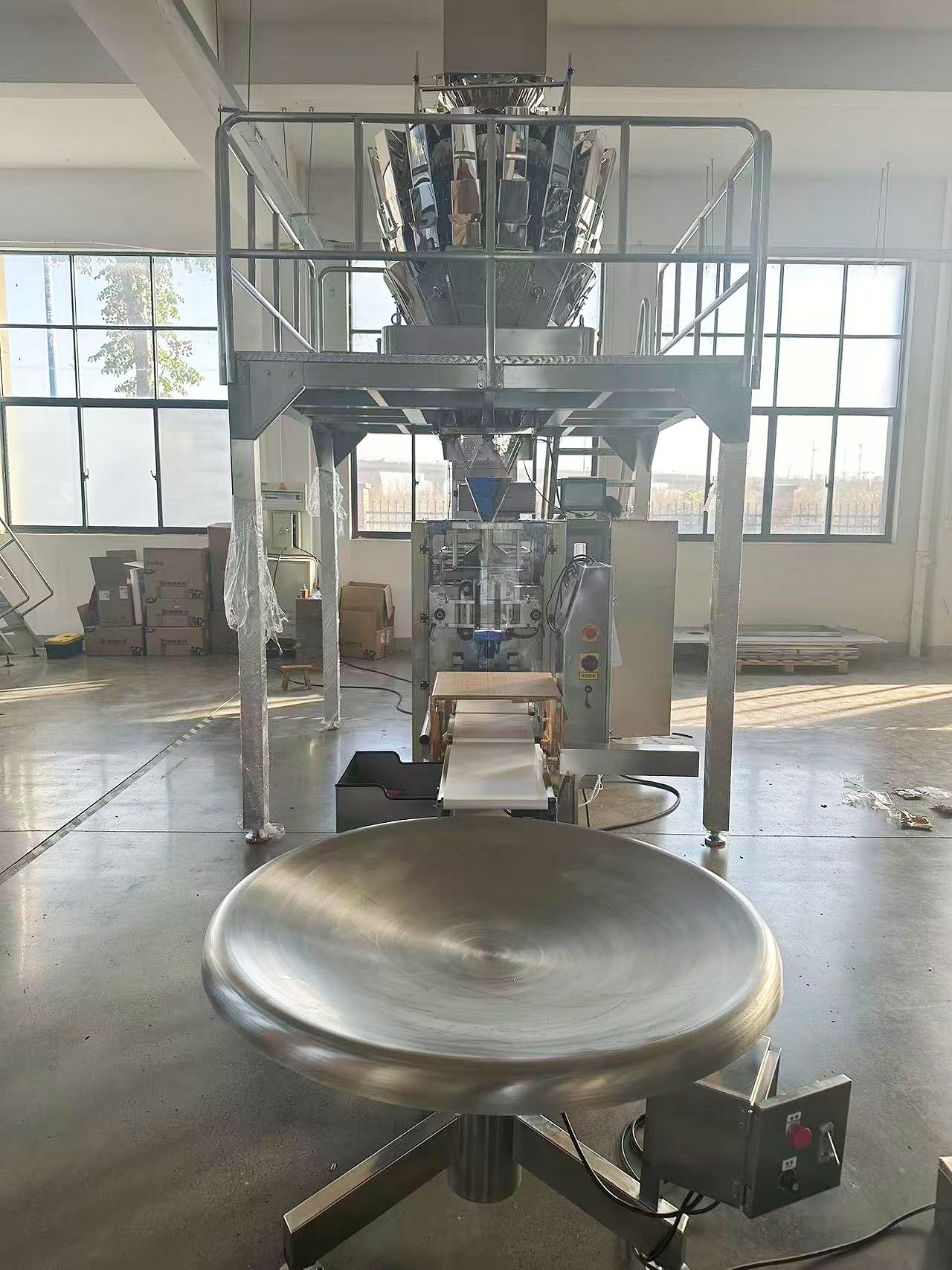

Vertical form-fill-seal (VFFS) packaging is the workhorse format for loose, free-flowing products — candies, gummies, hard sweets, and small snacks sold by weight rather than by piece. The Junyao high-speed vertical candy packing machine fills this role with a robust VFFS platform designed for the speed and reliability demands of confectionery production.
Unlike horizontal flow wrappers that package individual pieces, a vertical machine forms a bag from flat film, fills it with product (typically via a multi-head weigher or volumetric cup filler), and seals it — all in a continuous vertical cycle. The result is pillow bags, gusseted bags, or quad-seal bags depending on the film-forming configuration.
Who this machine is for: Confectionery manufacturers who sell loose candy, gummies, or snacks in pre-weighed bags (100 g, 200 g, 500 g, 1 kg) — the format that dominates supermarket candy aisles worldwide.
1. Continuous motion, high throughput. Unlike intermittent-motion VFFS machines that stop for each seal cycle, the Junyao vertical machine uses continuous film motion with a rotary sealing jaw design. This eliminates the start-stop inertia that limits speed on intermittent machines and reduces mechanical wear on drive components.
2. Multi-head weigher compatibility. The machine integrates with 10-head and 14-head combination weighers for precise weight control — typically within ±1–2 grams on a 200 g target. The weigher communication protocol is industry-standard, so you can pair the machine with your existing weigher or a new one from our recommended suppliers.
3. Multiple bag formats. Configurable for pillow bags, gusseted bags, quad-seal bags, and block-bottom bags. The format change requires only a film-forming collar swap — typically 10–15 minutes.
4. Film versatility. BOPP, CPP, PE, laminated films, metallized films, and kraft-paper laminates. The film tension control system handles different material stiffness and thickness automatically.
5. Stainless steel, washdown-ready. The frame and all product contact surfaces are 304 stainless steel. The electrical cabinet is IP65 rated for washdown environments. Designed for food factory hygiene protocols.
| Parameter | Value |
| Model | JY-LS270 |
| Packaging Speed | 15 - 70 packs/min |
| Power | 4.5 KW |
| Weight | 640 KG |
| Dimensions (L × W × H) | 1870 × 1305 × 1600 mm |
| Power Supply | 220V / 50-60Hz |
| Bag Size Range | 80 - 400 × 80 - 250 mm |
| Drive System | Dual servo |
| Control System | PLC + HMI touch screen |
| Sealing Type | Vertical pillow / gusseted |
| Certification | CE |
Xingjunyao Intelligent Packaging Technology (Taizhou) Co., Ltd. manufactures the JY-LS270 at its 13,000 m² facility in Taizhou, Zhejiang, China. The factory integrates CNC machining, sheet-metal processing, electrical assembly, and final testing in a single location, which allows close coordination between engineering and production.
Every JY-LS270 is assembled and tested according to a standardized process. The forming tube is checked for straightness and surface finish; the servo motors are calibrated for position and torque; the sealing heaters are matched to thermocouple readings; and the machine is run for a minimum of 24 hours with representative product before final inspection. A full CE technical file is prepared, including risk assessment, electrical drawings, and operating instructions. Spare parts are stocked at the factory, and the Junyao engineering team supports commissioning, remote diagnostics, and on-site service when needed.
Q: What is the difference between a vertical packaging machine and a horizontal flow wrapper?
A vertical packaging machine forms a bag from a flat film roll, fills it from above, and seals it vertically. A horizontal flow wrapper pushes products horizontally into a folded film web and seals along the sides. Vertical machines are better for free-flowing granular or counted products, while horizontal machines are preferred for individually wrapped solid items like candy bars or biscuits.
Q: Can the JY-LS270 run printed film?
Yes. The machine is equipped with a photoelectric mark sensor that detects the printed eye mark and adjusts the film pull each cycle to keep the print centered on the bag.
Q: What filling equipment can be used with this machine?
The JY-LS270 can be paired with multi-head weighers, linear weighers, volumetric cup fillers, screw feeders, counting discs, and bowl feeders. The PLC can be programmed to coordinate with the selected filling device.
Q: Is the JY-LS270 suitable for a facility with only 220V power?
Yes. The standard power supply is 220V, 50-60 Hz, making it suitable for many small and medium production facilities. Other voltages can be quoted upon request.
Q: How many product recipes can be stored?
The machine can store up to 100 product recipes in internal memory. Each recipe includes bag length, sealing temperature, film tension, servo parameters, and mark sensor offset.
