High Speed Solid Candy Flow Wrapping Machinery Milk Tablet Sachet Pillow Packaging Machine
Product Overview

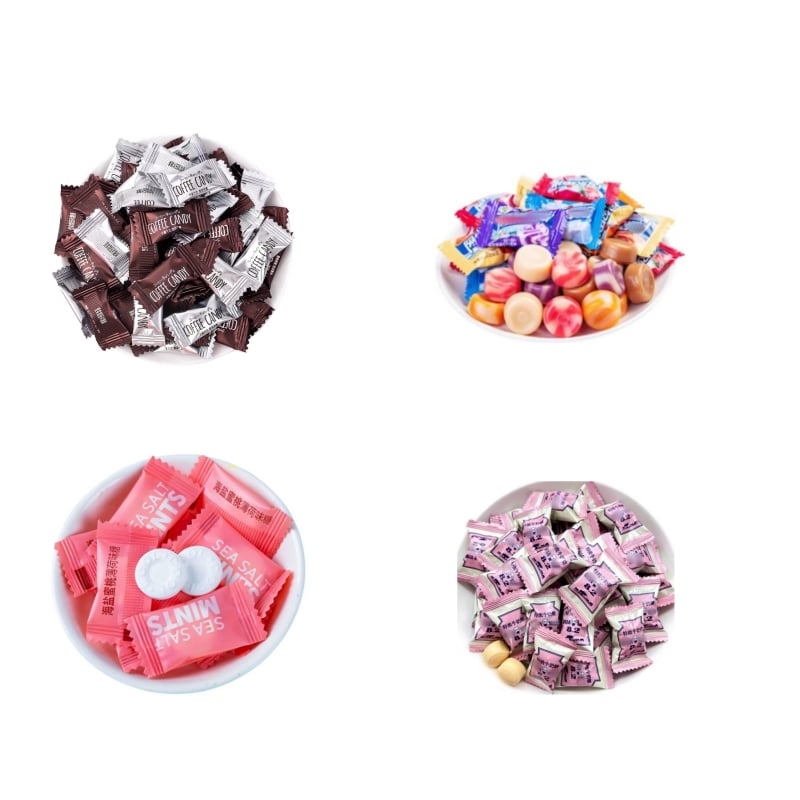

The JY-ZB1500 high-speed fully automatic pillow packaging machine is suitable for the automatic arranging and packaging of solid, regularly shaped granular items, such as candies, chocolates, beef granules, preserved fruits, and similar products. It can achieve full automation from the output port of the forming equipment through docking conveyors, sorting, and packaging according to customer requirements. Furthermore, it can be customized in various ways to meet the output requirements of supporting forming equipment based on customer needs.
1、Equipped with a triple-servo touch screen control system.
2、Features an oversized material arranging tray for effective sorting and low empty package rate.
3、Individual machine sections support independent operation, facilitating convenient maintenance and debugging.
4、Excels in high-speed stable operation, excellent sealing performance, and rapid packaging speed.
5、Bag length adjustment requires only touch screen settings—operates directly. Cutting position and feeding position can be modified anytime via the touch screen during operation stops.
6、Servo-driven transmission offers a simple structure and user-friendly operation.
7、304 stainless steel frame ensures food-grade safety compliance.
8、Dual-roll film system enables non-stop packaging film replacement.
| Parameter | Specification |
| Model | JY-ZB1500 |
| Packaging speed | 50-1500 packs per minute |
| Dimensions | 3060*1260*1780 mm |
| Total weight | 1526 kg |
| Total power | 4.5 KW |
| Finished bag size | 45-80 mm |
The vibratory bowl — the machine's most specialized component — is fabricated from 304 stainless steel plate using laser cutting and CNC forming, then electropolished to a mirror finish. Bowl track geometry is verified on a coordinate measuring machine (CMM). The optical inspection system is calibrated with certified reference artifacts before shipment. A complete quality dossier including calibration certificates accompanies each machine.
Q: How is the optical system calibrated for a new product?
Using the teach-in function: load 50–100 conforming products, run in calibration mode, and the software calculates acceptable tolerance bands based on the sample's statistical distribution. Review and adjust on the HMI, then save as a named product recipe. Process takes 15–20 minutes per product.
Q: Can the machine run non-spherical products?
Yes. The vibratory bowl and orienting track can be bypassed. A standard linear infeed conveyor is fitted in approximately one hour. The 3-servo wrapping platform operates identically for all product shapes.
Q: What's the maintenance requirement for the vibratory bowl?
Daily visual inspection and wipe-down with isopropyl alcohol. The electromagnetic drive is sealed and requires no lubrication. Vibration calibration verification takes 5 minutes quarterly via the HMI diagnostic routine. Bowl suspension springs have an 8,000-hour service life.
