JY-ZB1500 High Speed Automatic Candy Packing Packaging Machine Flow Wrapping Machine Relaxa Indonesia

Description

Product Overview

The JY-ZB1500 high-speed fully automatic pillow packaging machine is suitable for the automatic arranging and packaging of solid, regularly shaped granular items, such as candies, chocolates, beef granules, preserved fruits, and similar products. It can achieve full automation from the output port of the forming equipment through docking conveyors, sorting, and packaging according to customer requirements. Furthermore, it can be customized in various ways to meet the output requirements of supporting forming equipment based on customer needs.

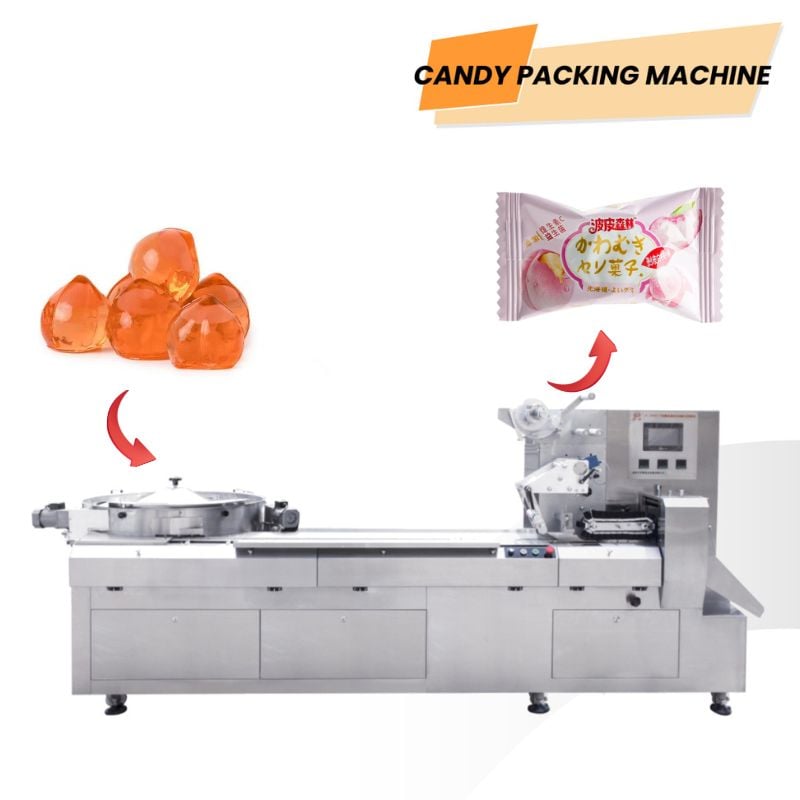

Machine picture

Product Characteristics

Key Features

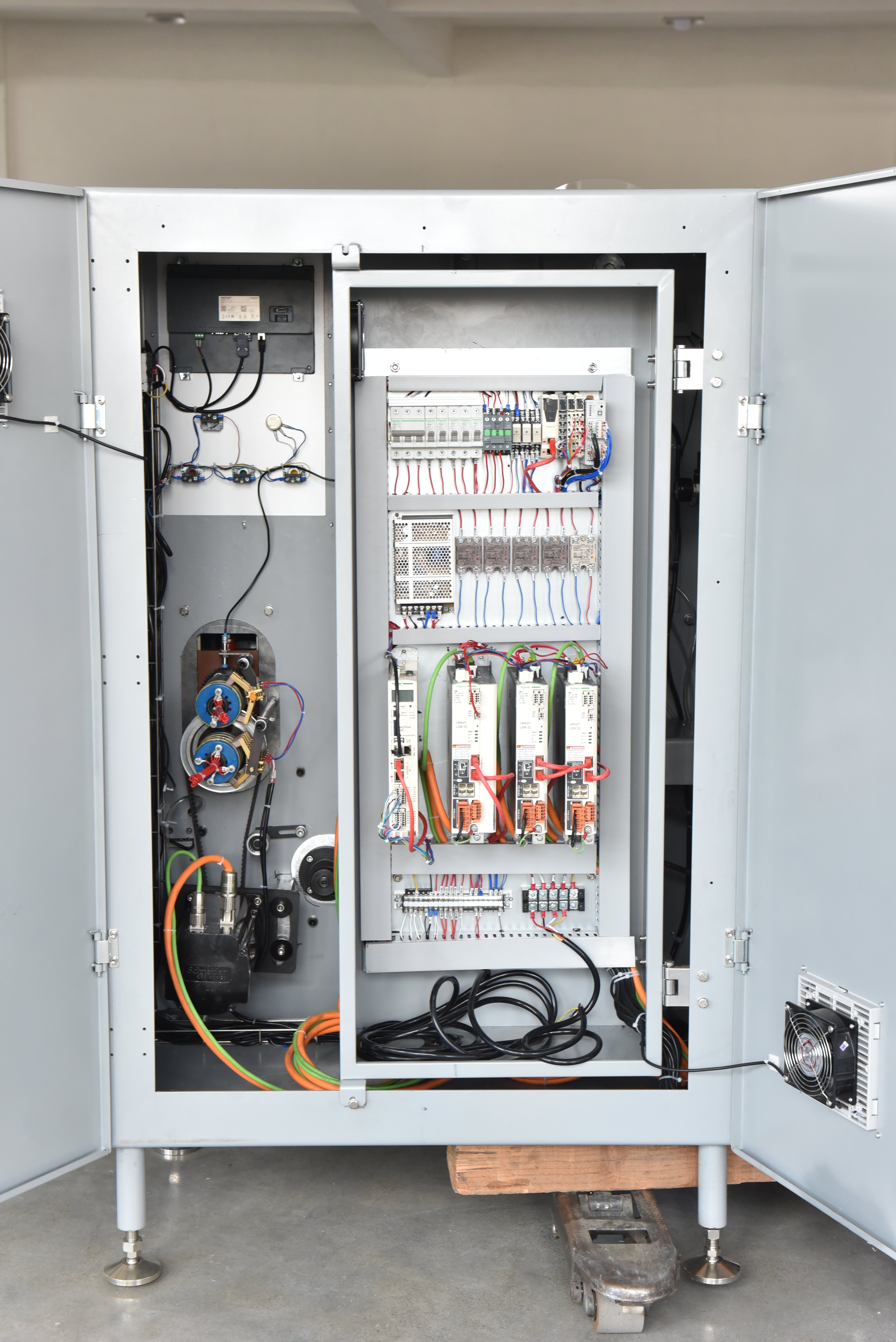

1.Servo control system: Equipped with a triple-servo touch screen control system.

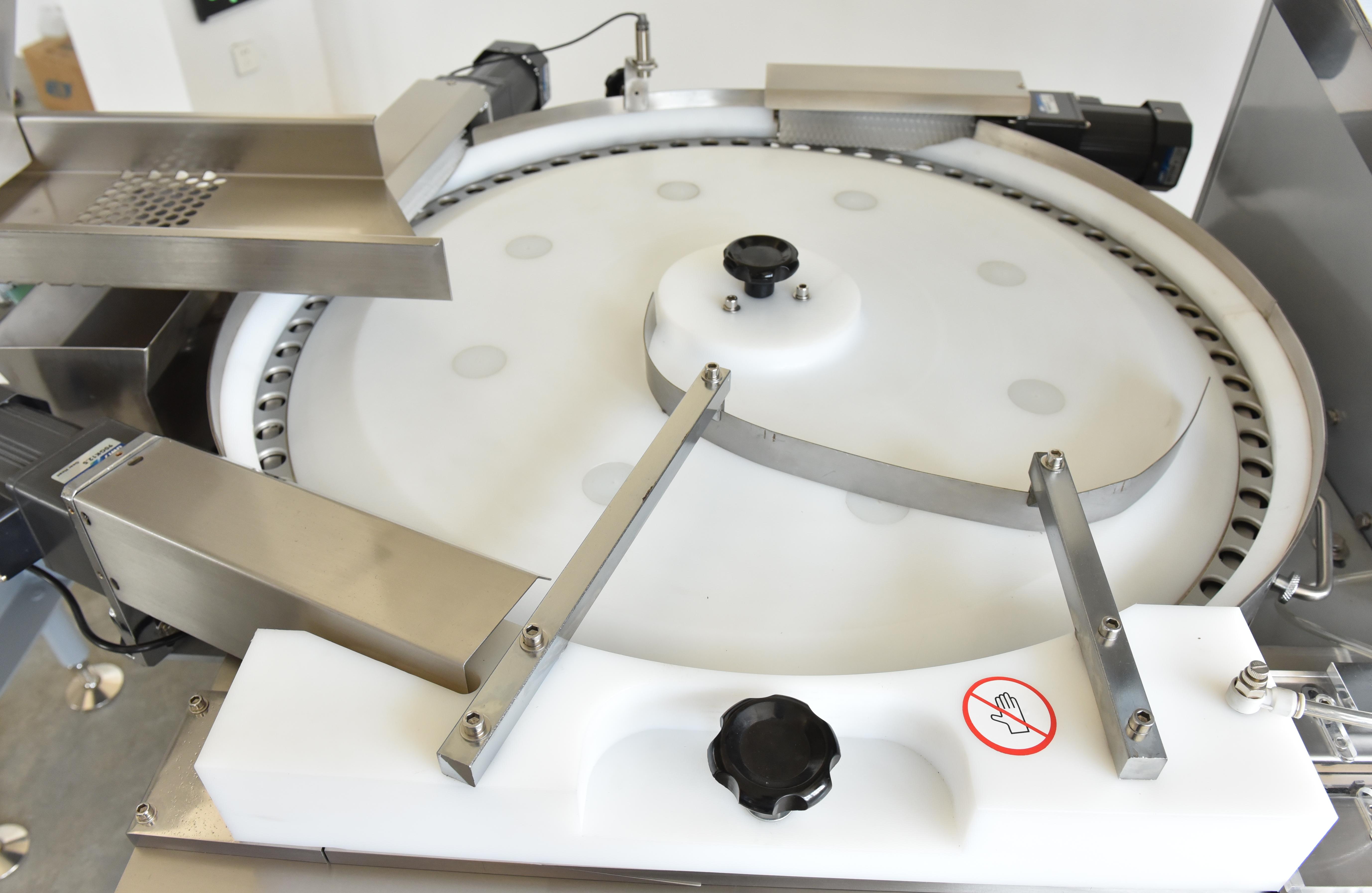

2.Automatic sorting plate: Features an oversized material arranging tray for effective sorting and low empty package rate.

3.Easy to operate: Bag length adjustment requires only touch screen settings—operates directly. Cutting position and feeding position can be modified anytime via the touch screen during operation stops.

4.Food-grade construction: 304 stainless steel frame ensures food-grade safety compliance.

Applications

Loose hard candy in pillow bags
Gummy candy in stand-up pouches
Jelly beans and jelly sweets
Chocolate-coated nuts and raisins
Snack mixes and trail mixes

Technical Specifications

Parameter	Specification
Model	JY-ZB1500
Packaging Speed	50-1500 pcs/min
Voltage	380V 50Hz
Total Power	4.5KW
Weight	1526KG
Dimensions	3055×1437×1780 mm
Bag Length	45-120mm
Compatible Products	Discs, spheres, squares, rectangles, ellipses, cylinders, etc.
Language Support	English, Chinese, Spanish, French, Arabic, Russian

Product Details

Manufacturing Quality

The vibratory bowl — the machine's most specialized component — is fabricated from 304 stainless steel plate using laser cutting and CNC forming, then electropolished to a mirror finish. Bowl track geometry is verified on a coordinate measuring machine (CMM). The optical inspection system is calibrated with certified reference artifacts before shipment. A complete quality dossier including calibration certificates accompanies each machine.

After-Sales & Warranty

12-month warranty
On-site installation and training
48-hour spare parts dispatch
Remote technical support in multiple languages

Company Profile

FAQ

Q: Can one machine really handle hard candy, jelly, and toffee?

Yes. The JY-ZB1500 is designed with quick-change forming tubes, adjustable feeding pressure, and independently heated sealing jaws that can be set for each product type. Saved recipes make switching between product types fast and repeatable.

Q: How is sticky toffee residue managed?

The sealing jaws and hopper contact surfaces are coated with food-grade anti-stick material. The sealing temperature is controlled by PID controllers to prevent overheating, and the jaws are designed for quick removal and cleaning during changeovers.

Q: Does the machine support printed film?

Yes. A photoelectric eye mark sensor detects the print registration mark and adjusts the film feed to keep the cut aligned with the printed design. The mark offset can be adjusted from the HMI.

Q: How long does it take to switch between product types?

Mechanical changeover takes approximately 15 to 25 minutes, depending on the product type. Recipe recall on the HMI takes only a few minutes. With practice, the total changeover time can be under 30 minutes.

Q: What is the delivery time for the JY-ZB1500?

Standard delivery is 30 to 45 days after order confirmation and deposit. Custom electrical specifications, additional feeding systems, or special coatings may affect the lead time.
