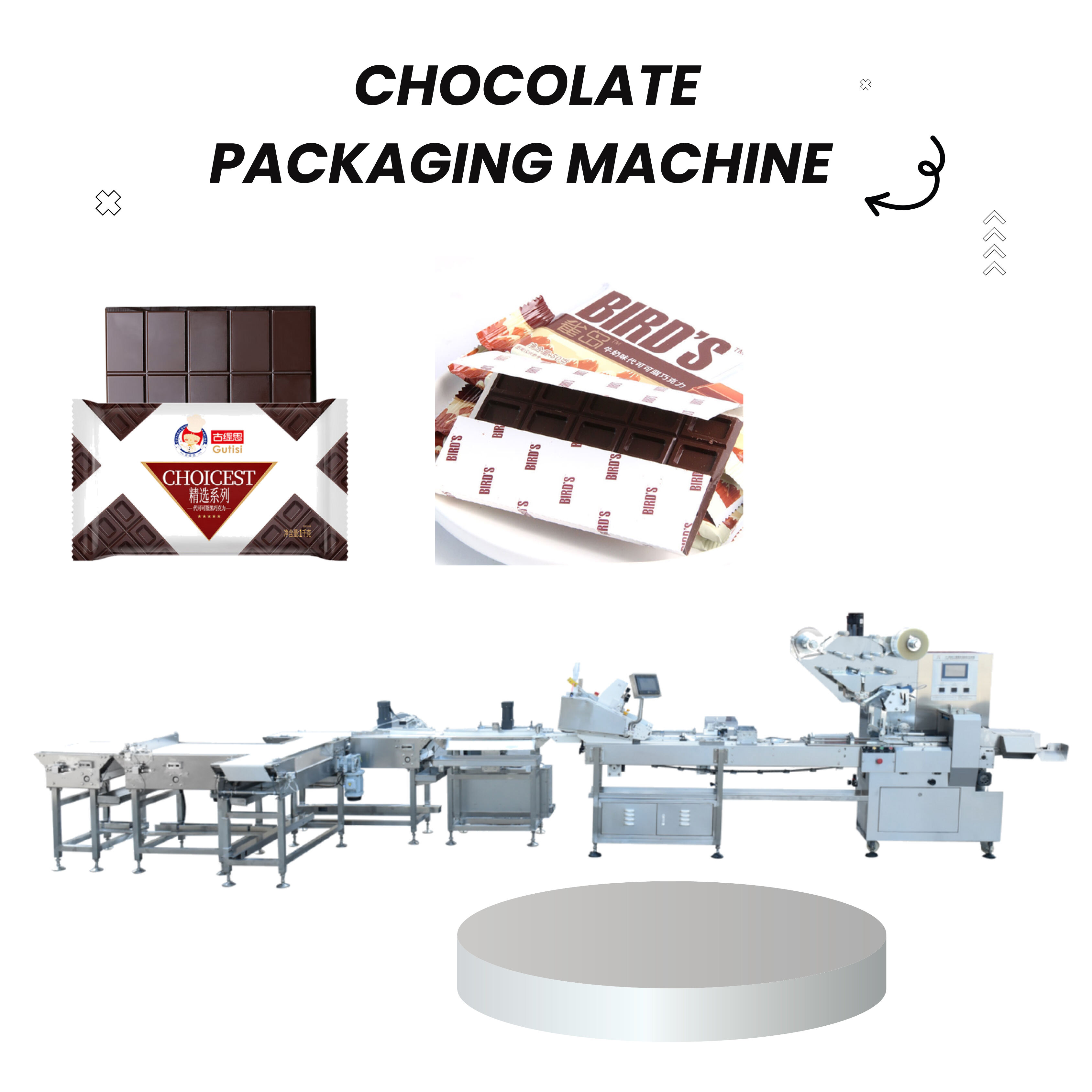

Automatic Feeding And Wrapping Waffle Biscuit Chocolate Packing Machine

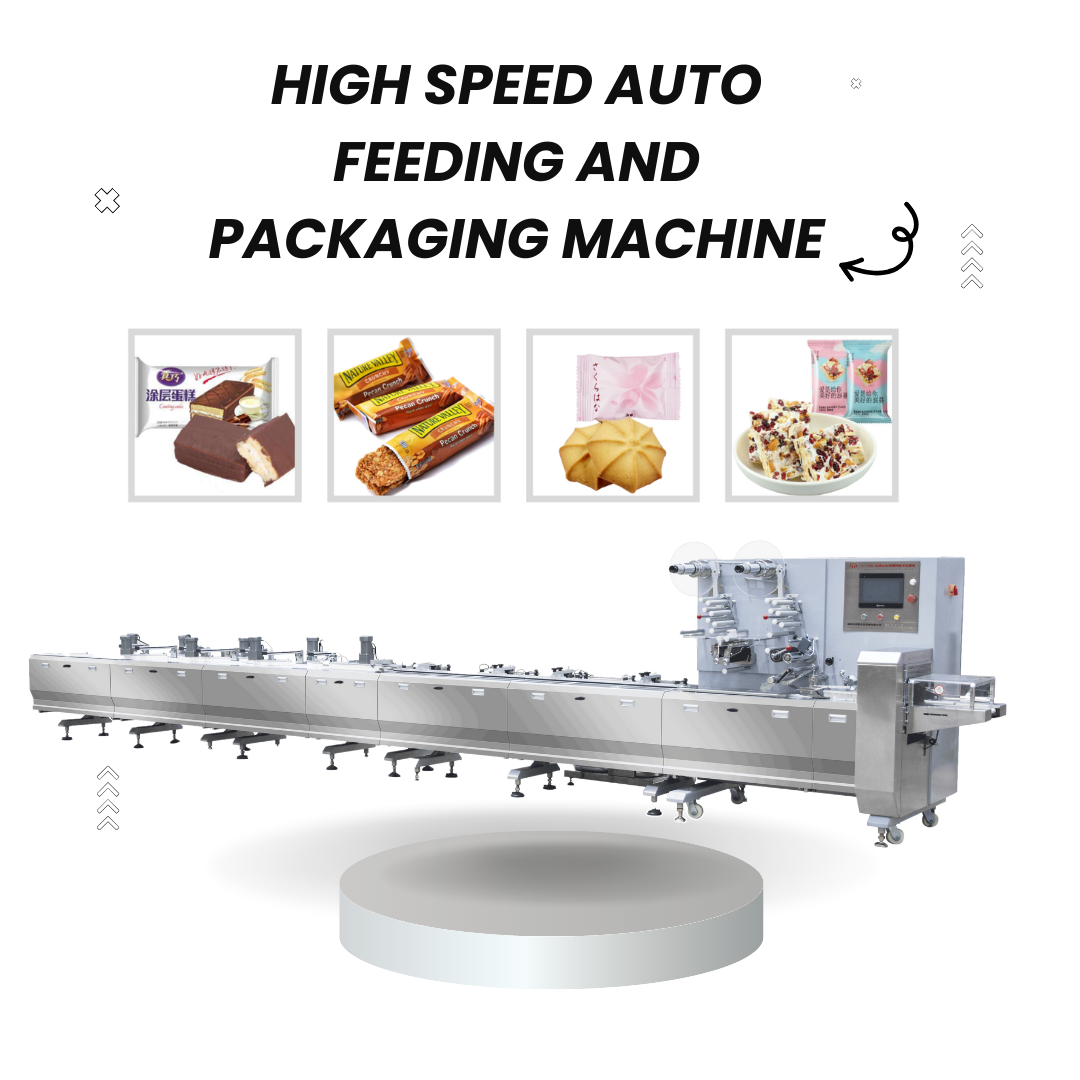

Introduction to automatic feeding pillow packing machine

--JY-L1000

一、Equipment Description ：

The fully automatic pillow packing line is suitable for pillow packing of fragile surface and easily damaged items, such as chocolate, wafer, puff, cake, Swiss roll, nougat, crisp sugar, pine tower, cotton candy and other candies and their coated products. It can achieve full automation from the output port of product molding equipment through docking conveying, shunt, finishing and packaging, and can be customized to meet the output of supporting molding equipment through various ways.

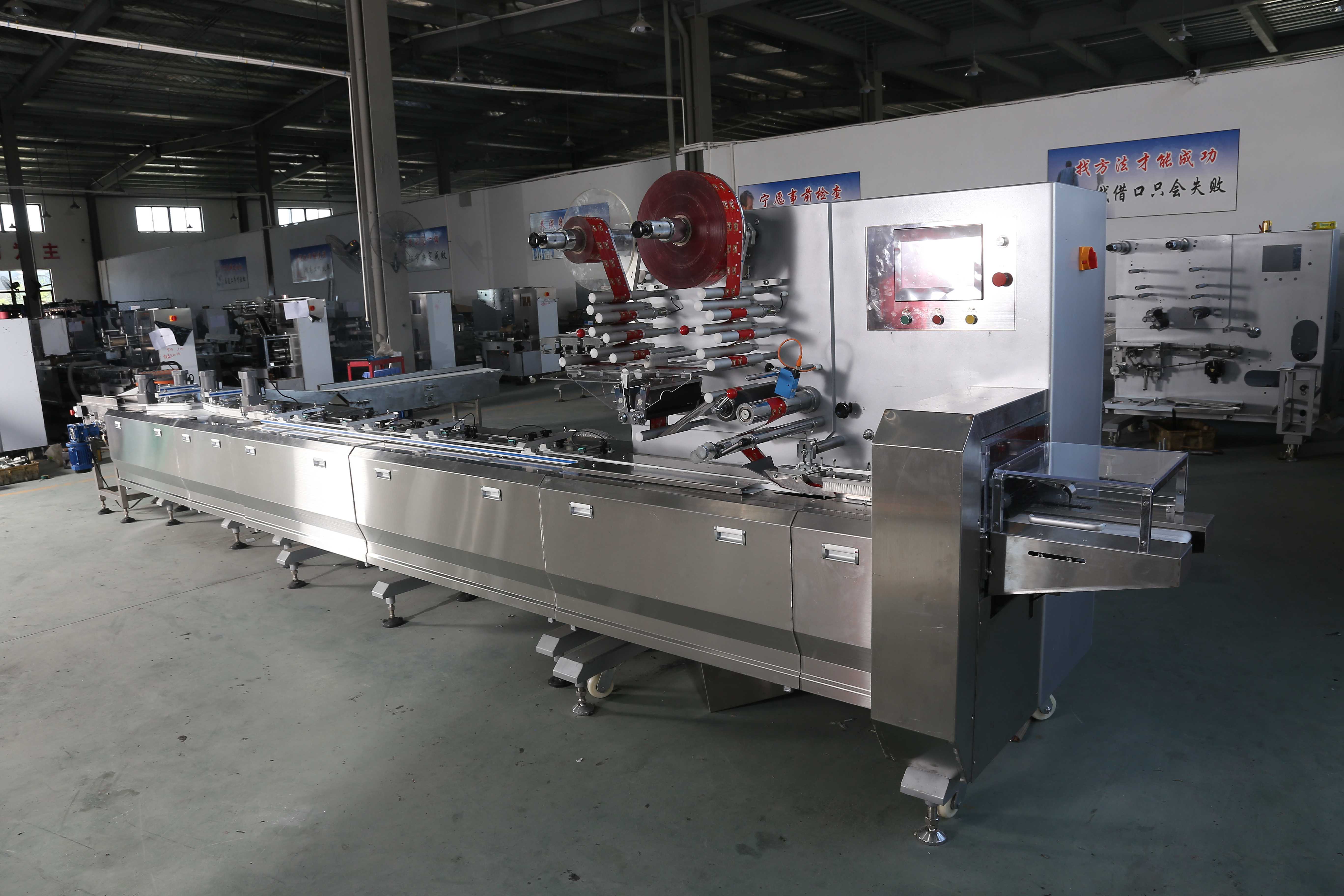

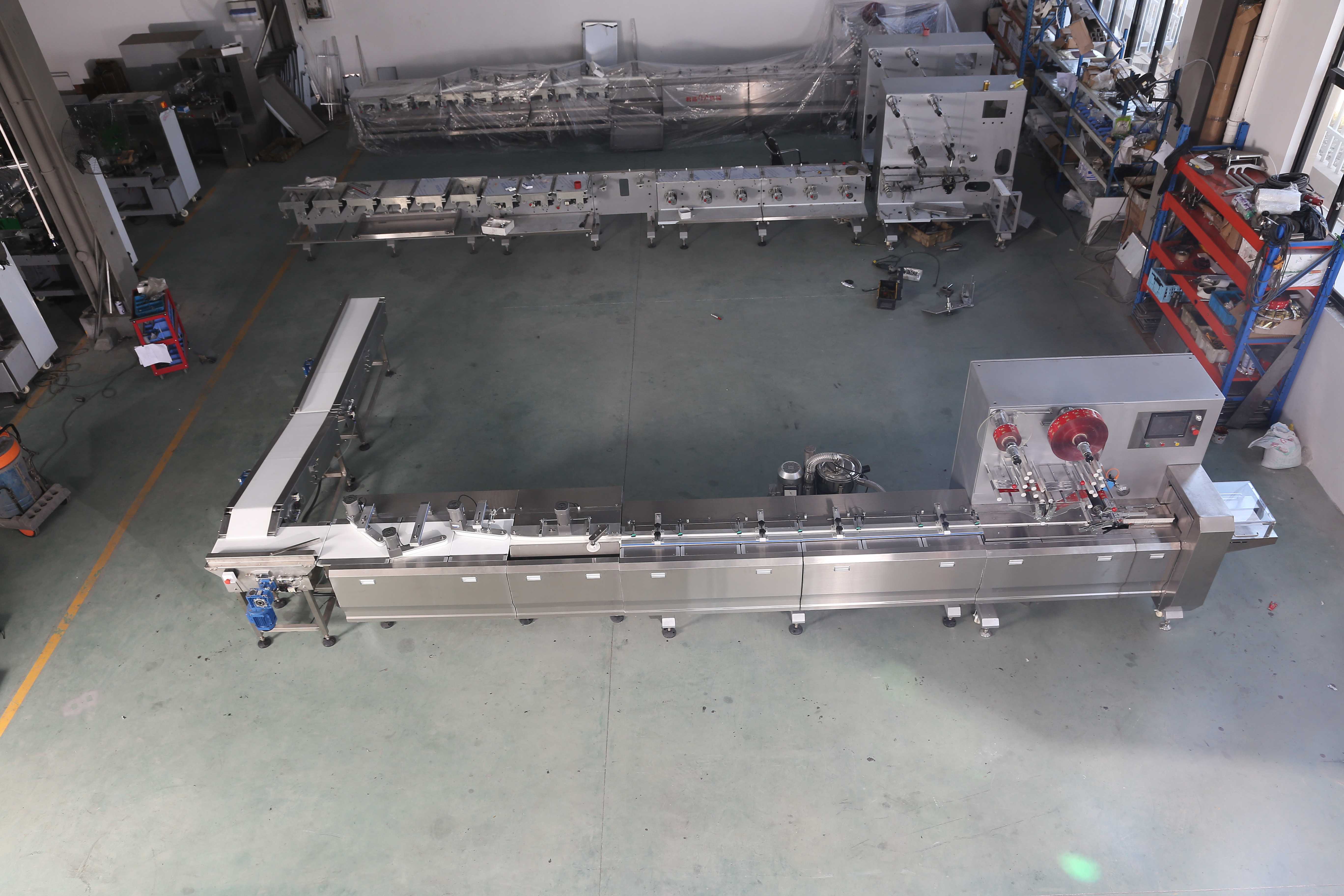

二、Machine picture：

Major Parameters of the Equipment

* Packing speed：50-1000bags/min (The packaging speed is determined by the product size and packaging film material)

* Finished Bag Size：15-200*15-60*5-30mm

* Voltage：380V; 50HZ, 3phase( Can be customized)

* Total Power：9.5KW

* Dimensions：8900mm*1180mm*1786mm

* Net Weight：3500KGS

Performance Characteristics：

* Stainless steel 304 machine frame.

* Can be connected directly with production line, make products sending, forming, filling and sealing with fully automatic.

* Full automatic,Photoelectric sensor tracking system, no empty package.

* Multiply Servo motor configuration (Nine servo motor) simply construction, easy maintenance.

* With automatic film roll link,Reduce packaging waste and improve work efficiency.

* High speed,Durable structure.

* Stainless steel body frame, all belt with food grade PU

(1) Conveying and feeding structure:

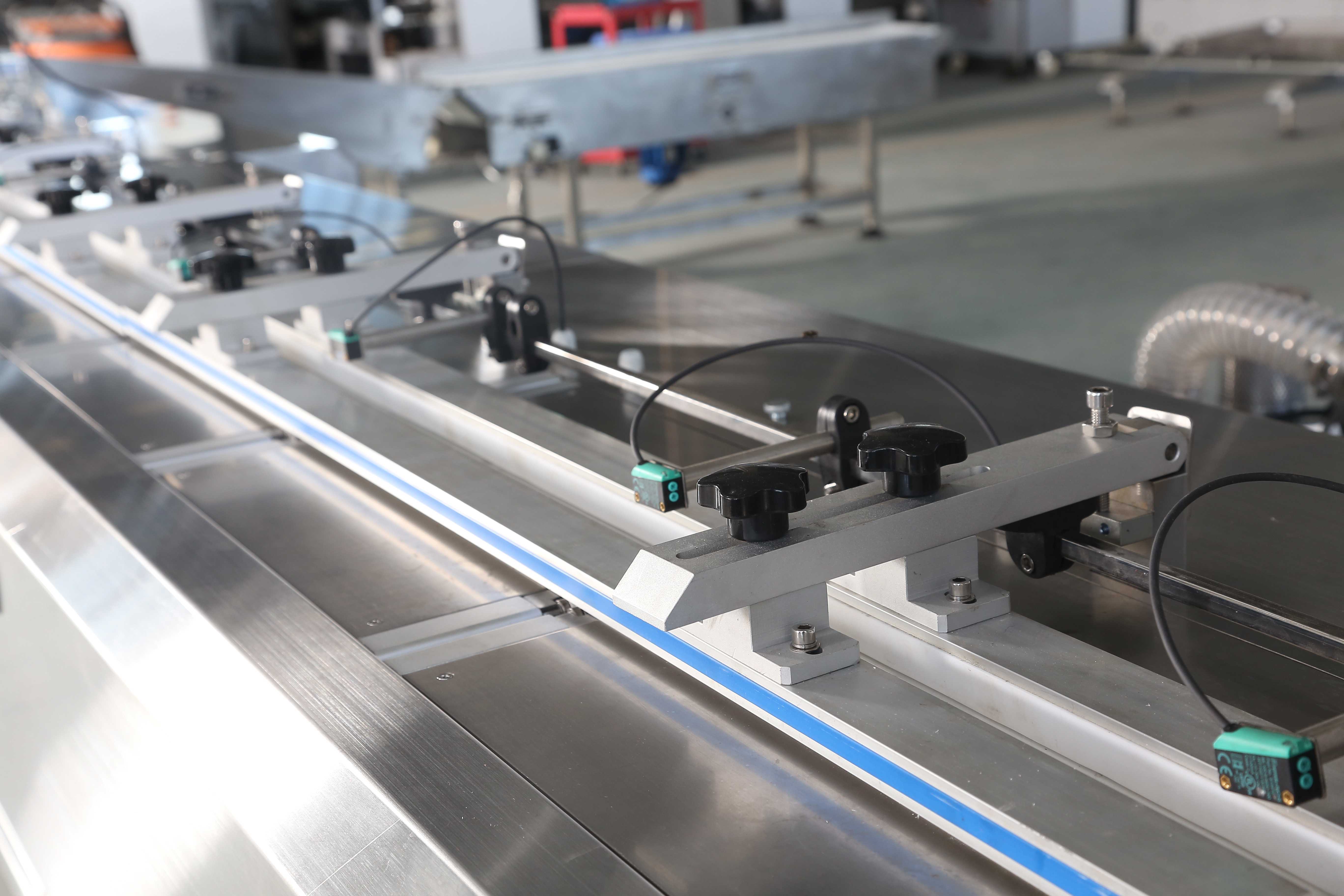

1.1 Automatic intelligent method is adopted to reduce the pressure of packaging, smoothly transported to the material handling belt, equipped with automatic packaging detection system, 100% no empty package.

1.2 Adopting chain transmission.

1.3 Product position adjustment: Touch screen to adjust the product position。

（2）Vertical sealing structure

2.1 Longitudinal sealing mechanism: The design adopts the principle of tension to ensure that each package is equally dense and the sealing is reliable during high-speed operation.

2.2 The transmission adopts high-precision gear transmission and low-noise motion.

2.3 The longitudinal sealing heating wheel has a heating function and uses high-temperature resistant bearings to work at high temperatures, improving its service life.

2.4 Longitudinal sealing heating device: using heating coils for better heating effect.

（3）Horizontal sealing structure：

3.1 Up and down sealing transmission: To ensure the precision of sealing, high-precision gear transmission is used.

3.2 Horizontal sealing heating device: using heating tubes for heating.

（4）Film structure：

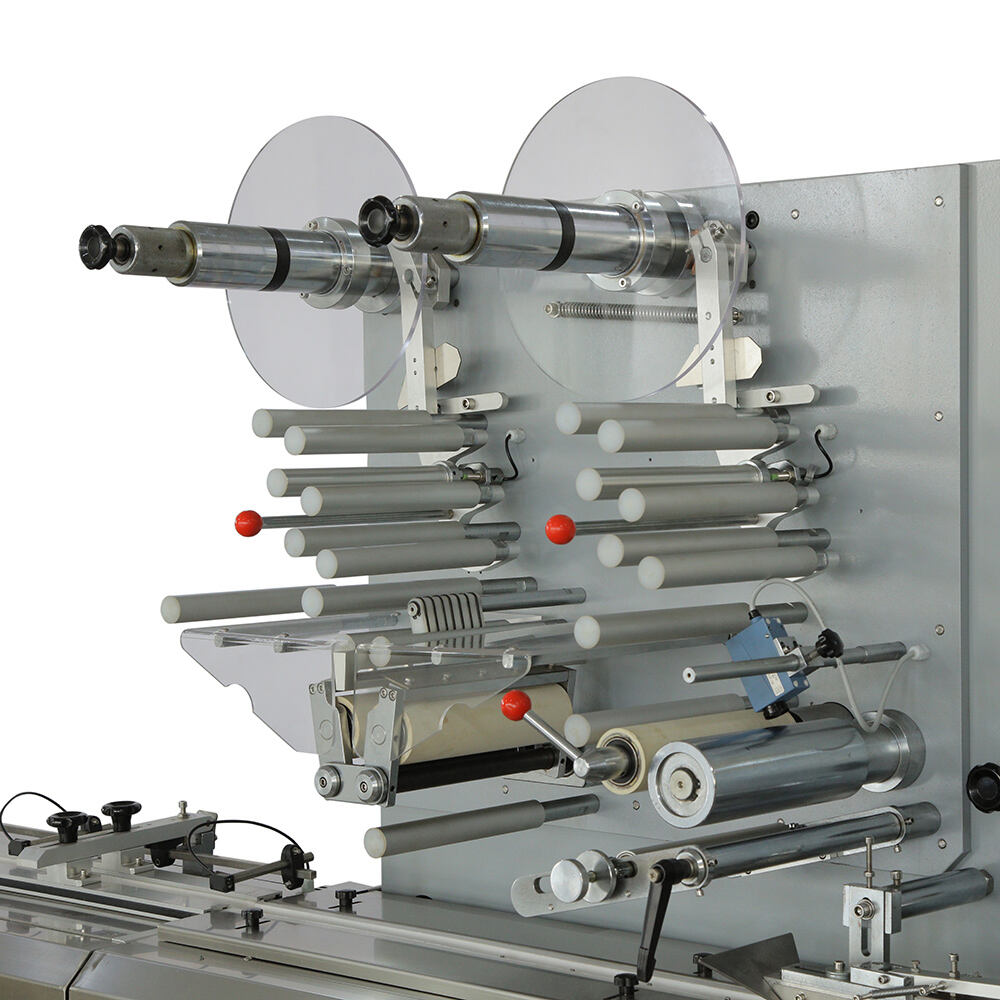

4.1 Paper feeding mechanism: Design two paper feeding rollers to divide into A roll and B roll.

4.2 Automatic film changing mechanism: capable of automatically connecting A roll of film to B roll of film during high-speed operation without stopping the machine

Slow down.

4.3 Packaging film length adjustment: 1. It can automatically benchmark and adjust the length, 2. It can also be manually set according to packaging needs

Set and adjust the length.

（5）Transmission structure：

5.1 Horizontal Sealing Knife Seat Transmission: Adopting servo transmission, high-precision reduction structure, and automatic adjustment of packaging film length.

5.2 Film feeding transmission: Adopting servo transmission.

5.3 Chain feeding transmission: Adopting servo transmission.

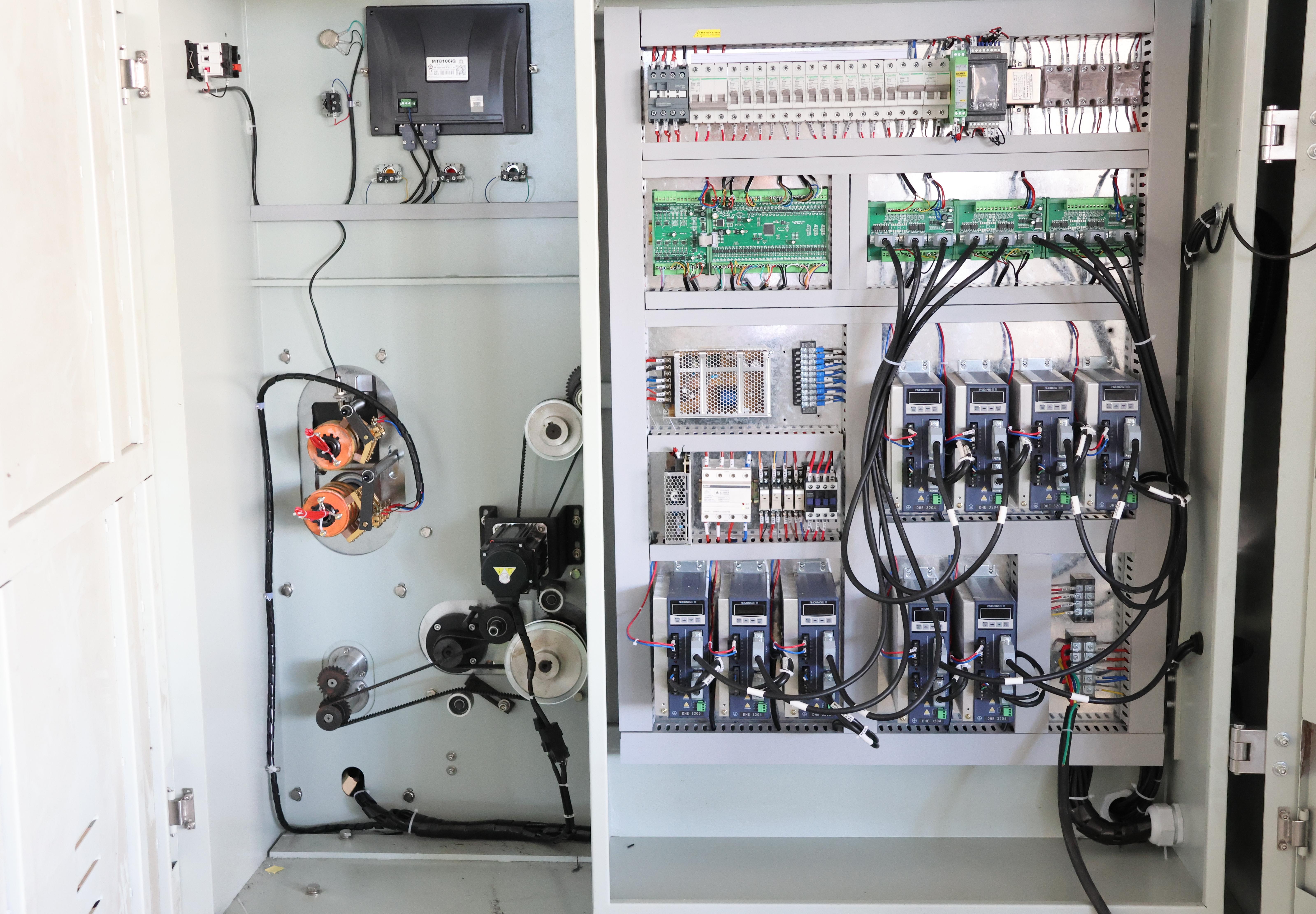

（6）Control system:

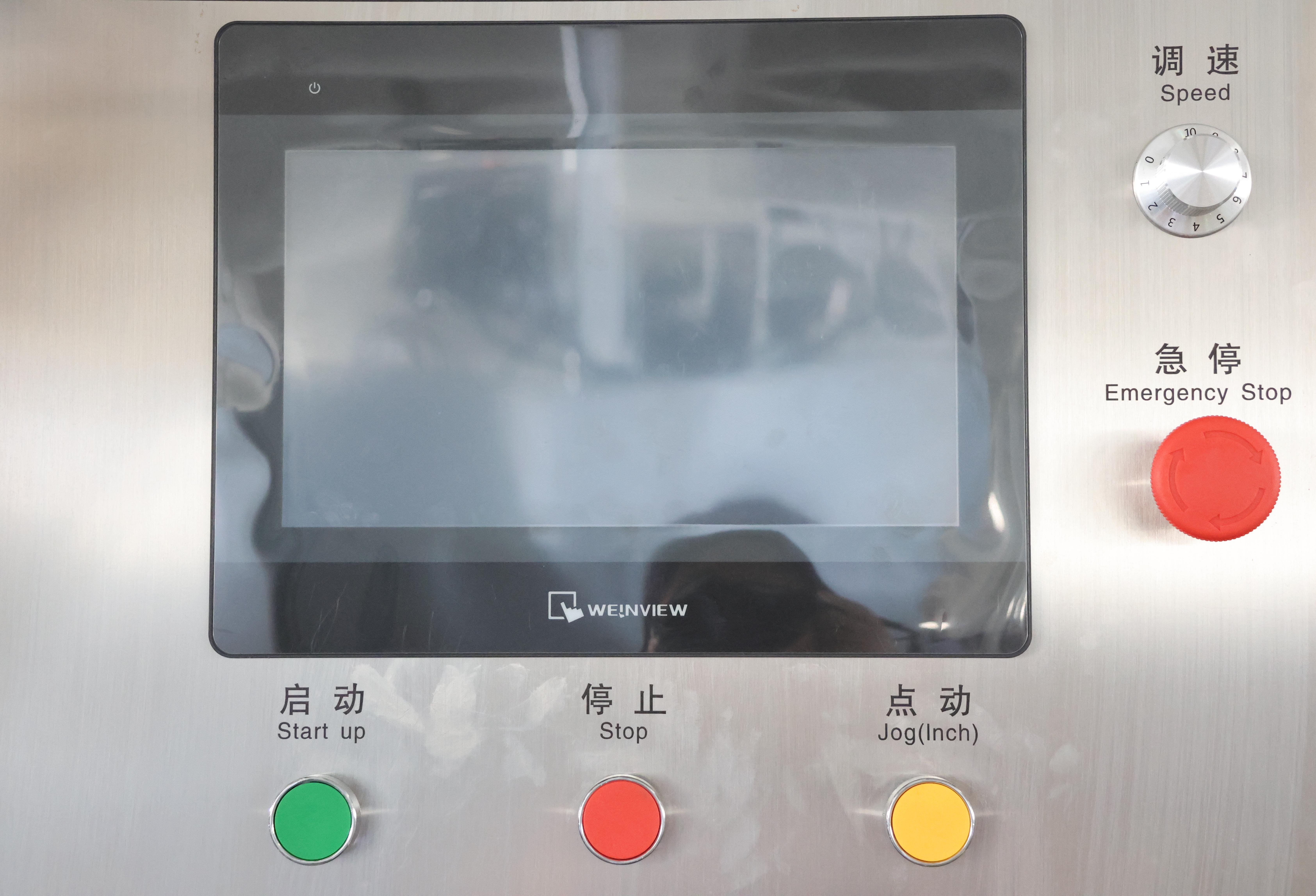

Whole machine control system: adopting a nine servo control system, efficient servo motors, touch screen display, and low energy consumption.

Details of machine

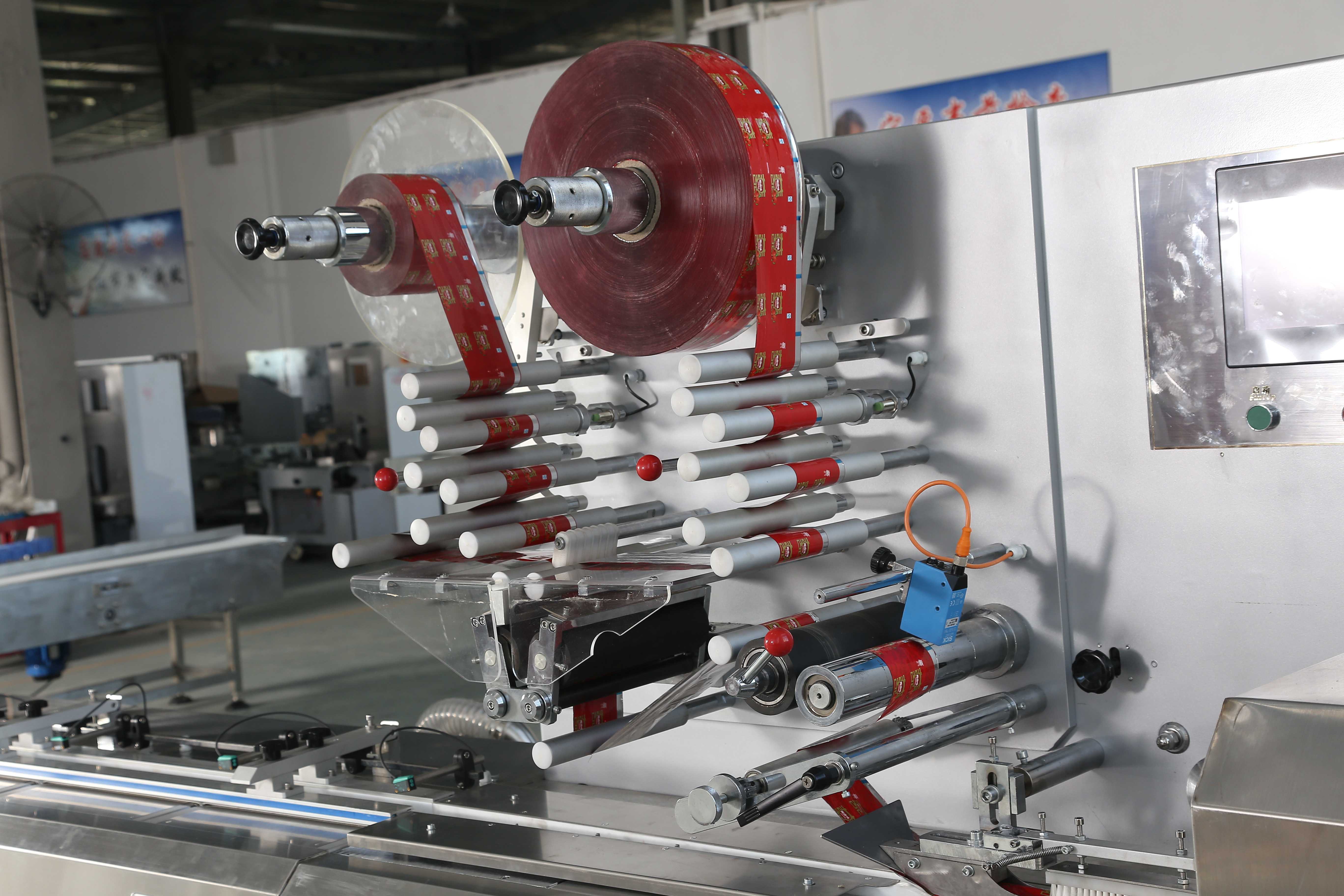

Automatic film roller,without stop replacement of packaging film.

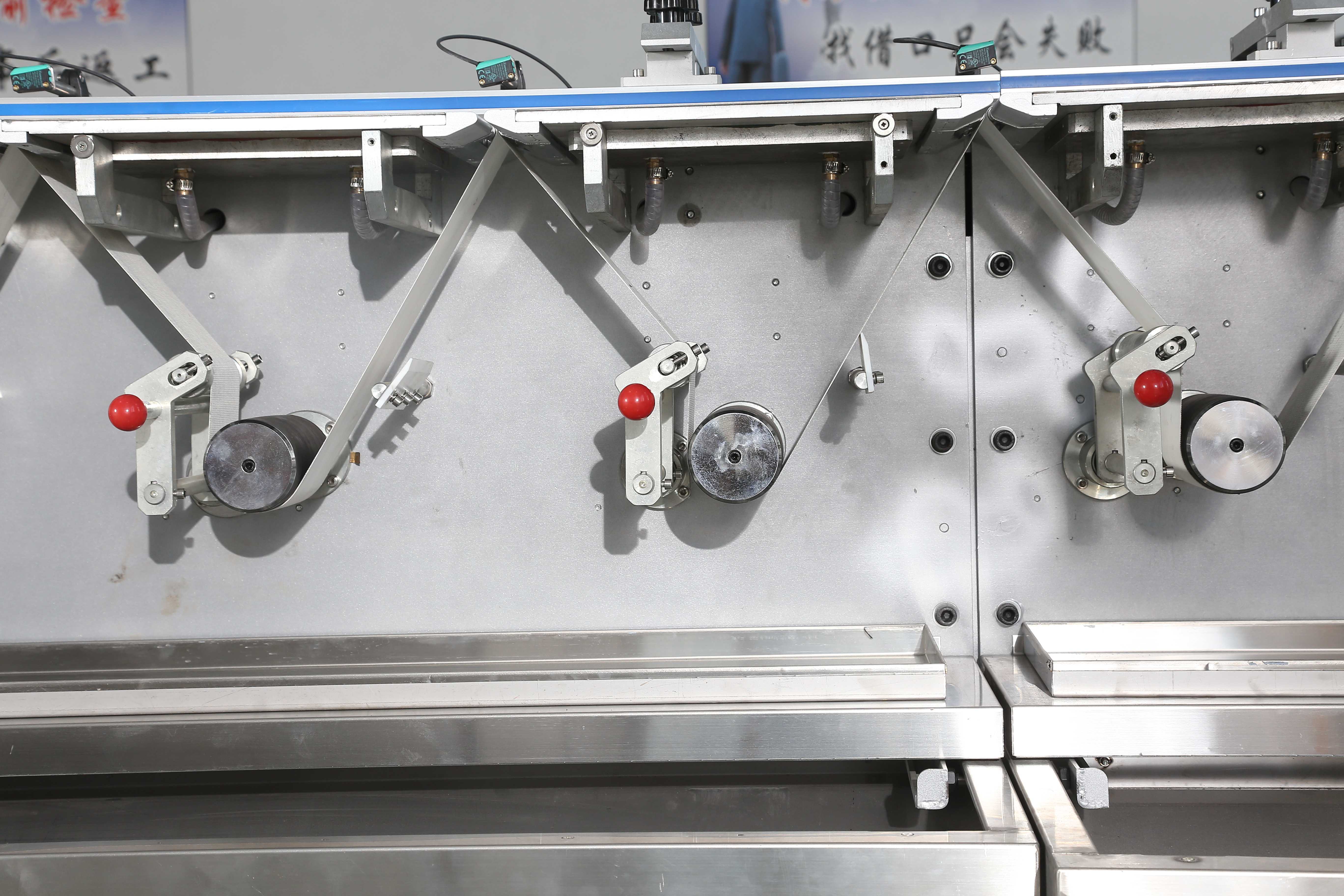

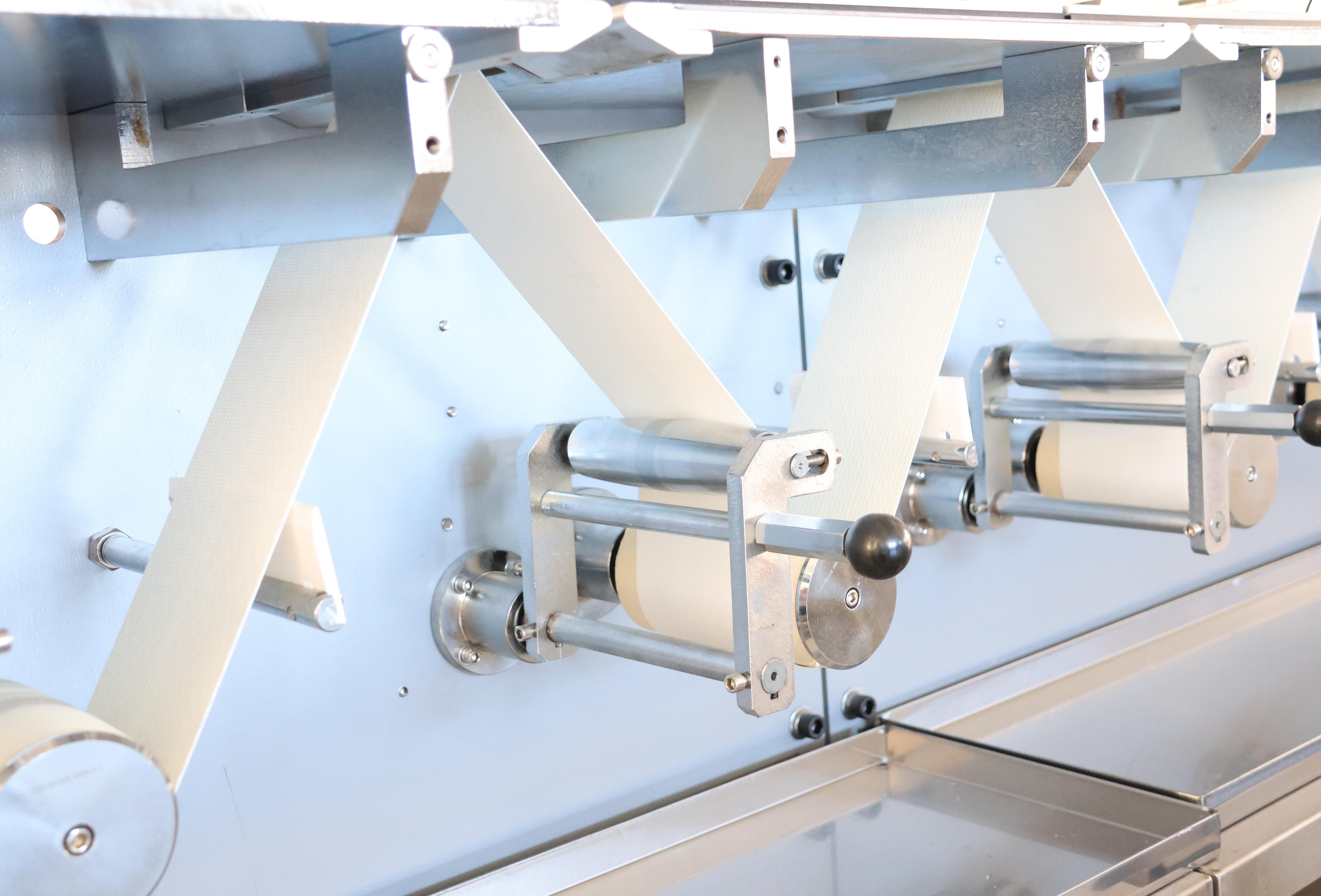

The conveyor belt is easy to replace and maintain. No need for any tools to quickly replace the conveyor belt, and optional cooling function (water-cooled circulation device, can also be connected to the inlet and outlet water pipe source joints).

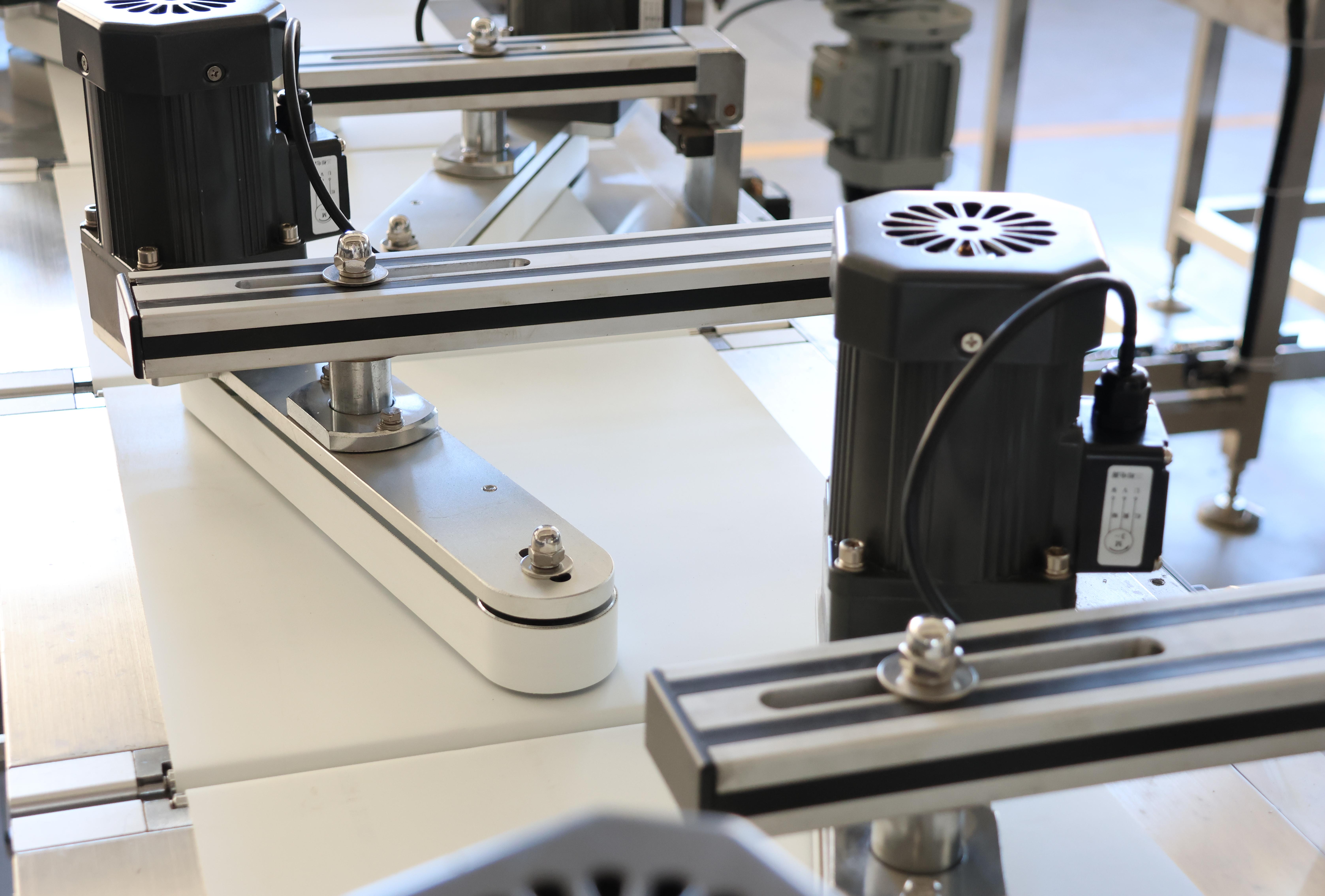

The tail section has 6 conveyor belts and 6 reduction motors with variable frequency control, which can independently adjust the speed ratio.
