Compact horizontal pillow wrapping machine for small chocolate bars, candy, and snack products. Servo-driven, CE certified, multi-product flexible. 10+ years of export experience to 25+ countries.
Small-format confectionery products — mini chocolate bars, bite-sized candy pieces, snack bars, and individually wrapped sweets — require a packaging machine that is precise at small bag sizes, gentle on delicate products, and fast enough to meet volume targets. The Junyao horizontal pillow flow wrapping machine for small chocolate, candy, and snack bar products is purpose-built for this segment.

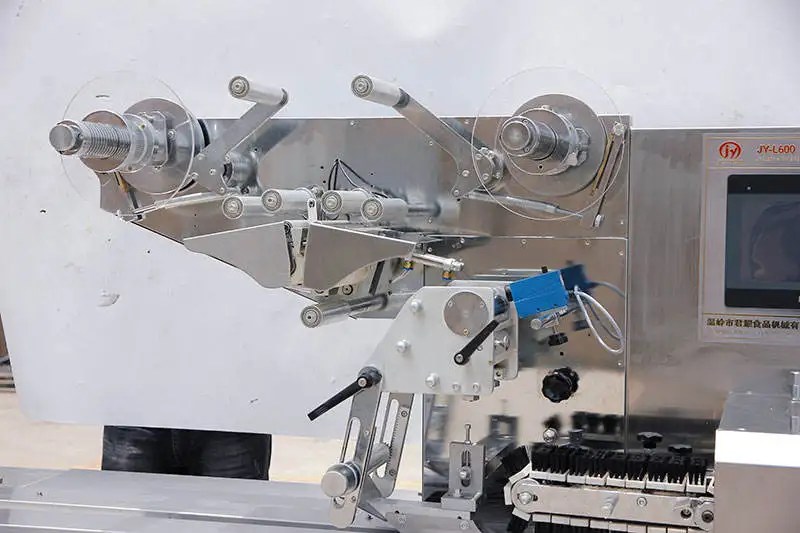

Manufactured at Xingjunyao's 13,000 m² facility in Taizhou, this machine handles mini chocolate bars (10–50 g), small candy pieces, snack bars, and similar compact confectionery formats. The machine's film feed system is calibrated for the short bag lengths typical of small-format products, and the temperature-controlled sealing system prevents heat damage to chocolate coatings and candy surfaces.
Why this matters for your business: Small-format products are a high-growth segment in confectionery — impulse purchases, checkout counter items, and multi-pack components all require consistent, attractive individual wrapping. A machine that can't maintain graphic alignment, seal integrity, and surface quality on small packages directly costs you shelf appeal and revenue.
2. Gentle product handling. The infeed conveyor uses custom-designed product pockets that match the dimensions of your specific chocolate bar or candy format. Products are transferred to the wrapping station smoothly, without the dropping or impact that can crack chocolate bars or scuff candy surfaces.
3. Temperature-controlled sealing for chocolate. Chocolate bloom — the whitish coating that appears when cocoa butter separates — is a primary quality complaint in chocolate packaging. This machine's PID-controlled sealing jaws maintain temperatures within ±2°C, preventing heat from migrating through the film to the chocolate surface.

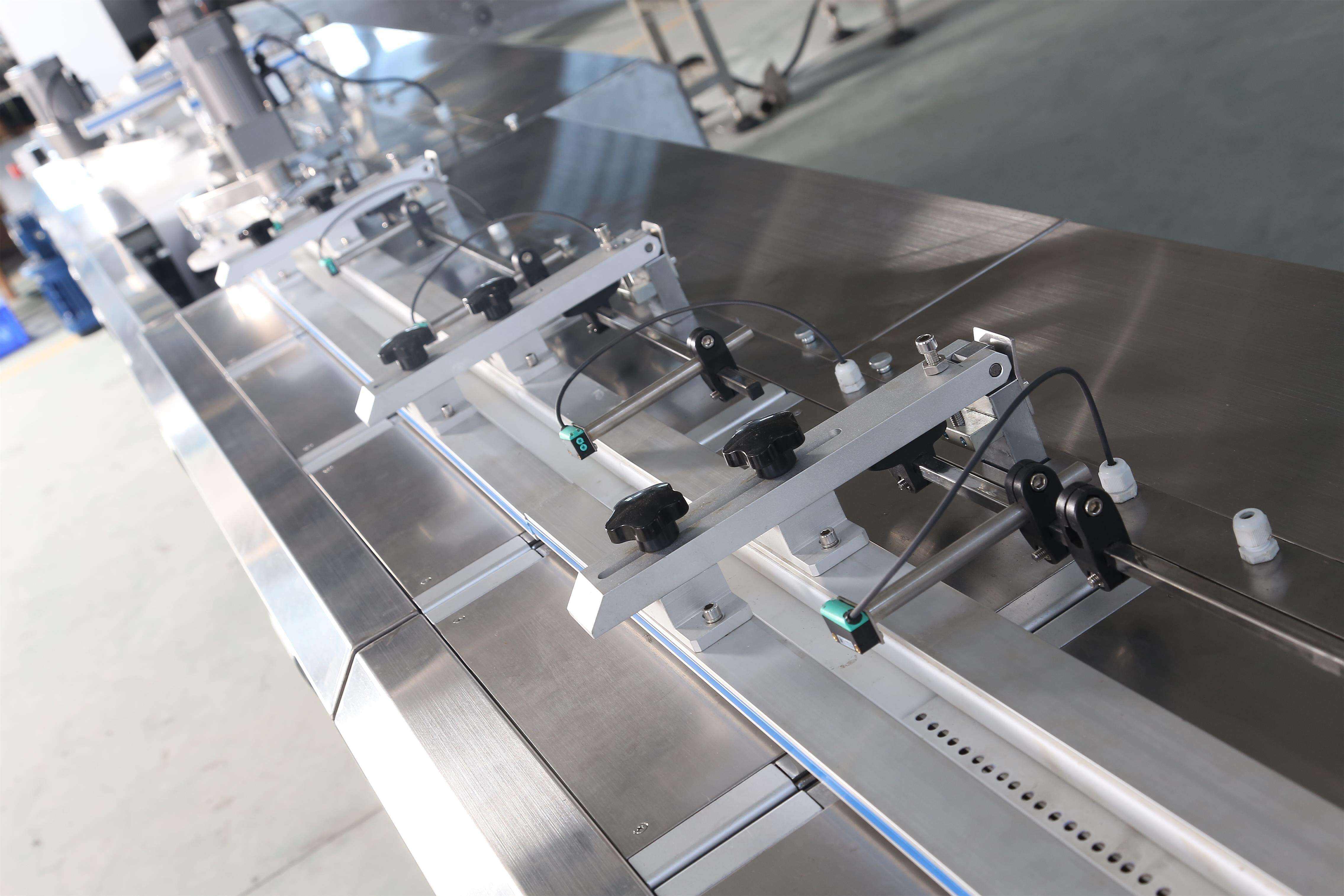

4. Quick format changeover. Recipe storage for up to 50 products. Switch between different small-format products by selecting the recipe on the HMI — film feed length, sealing temperatures, conveyor speed, and photoelectric registration parameters are all recalled automatically.
5. Compact footprint for space-constrained lines. Designed to integrate into existing production environments without requiring facility modifications.
| Parameter | Specification |
| Model | JY-L600 |
| Packaging Speed | 100-600 packages/min |
| Power | 4.0 KW |
| Total Weight | 780 KG |
| Machine Dimensions (LxWxH) | 2350 x 1250 x 1550 mm |
| Bag Length Range | 25-100 mm |
| Film Width Range | 20-80 mm |
| Sealing Type | Pillow seal (horizontal + vertical) |
| Power Supply | 220V/50Hz (or 380V/60Hz optional) |

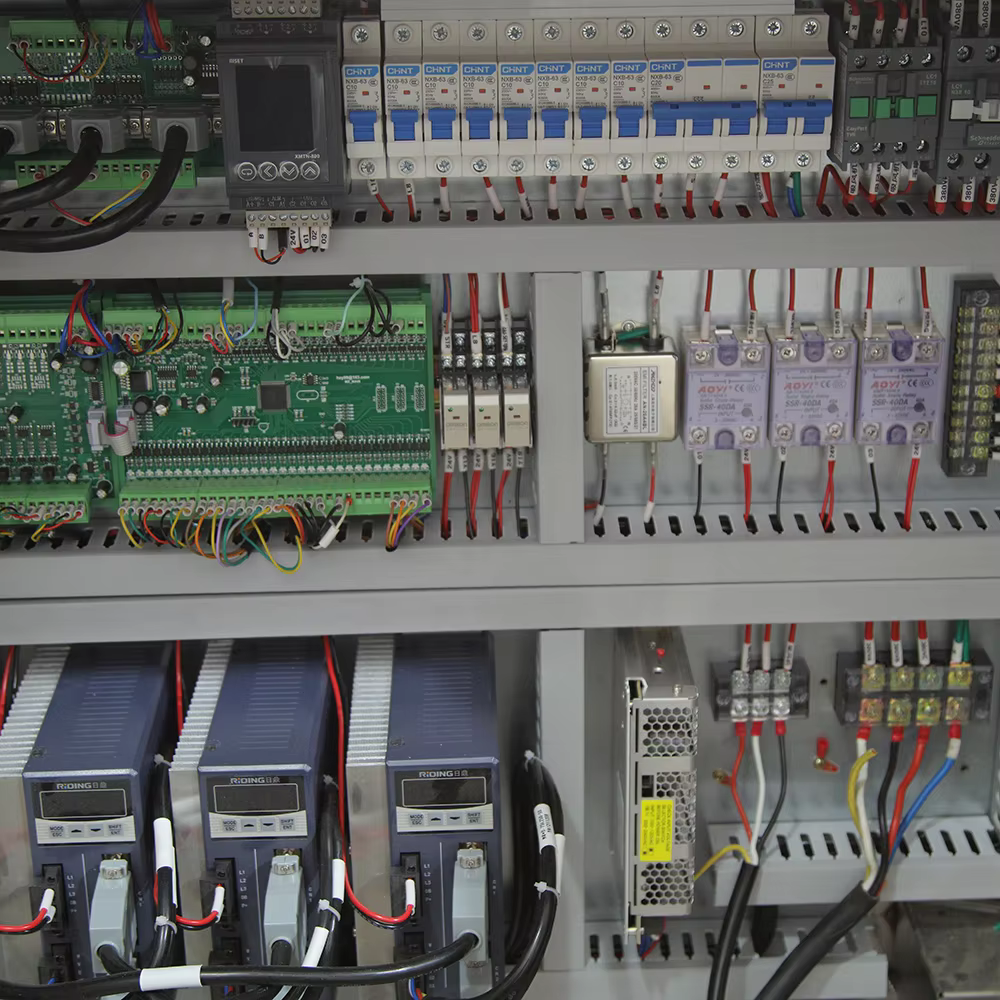

| Control System | Multi-axis servo-driven, PLC + HMI touch screen |
| Material Contact Surface | Food-grade 304 stainless steel |
| Certification | CE |
