CE Certified Automatic Feeding Plate Marshmallow Horizontal Seal Pillow Packing Machine

Brand:
Junyao
Spu:
JY-L600
Get a Quote Contact Us
  • Description
  • Product Characteristics
  • Technical Specifications
  • Product Details
  • Company Profile
  • Exhibition
  • Certification
  • FAQ
intelligent peanut crisps inclined plate automatic sorting and packing flow wrapping machine-0

+86-13586268768
[email protected]
Inquiry

Product Overview

The JY-L600 Pillow Packing Machine is a high-speed automatic feeding pillow packing line engineered by Xingjunyao Intelligent Packaging Technology (Taizhou) Co., Ltd. for the confectionery, bakery, and snack food industries. This advanced packaging system combines a nine-servo motor control architecture with precision mechanical engineering to deliver consistent, high-quality pillow-style packaging at speeds ranging from 50 to 500 bags per minute, with peak throughput reaching 1000 bags per minute on small-format products equipped with a six-knife rotary sealing configuration.

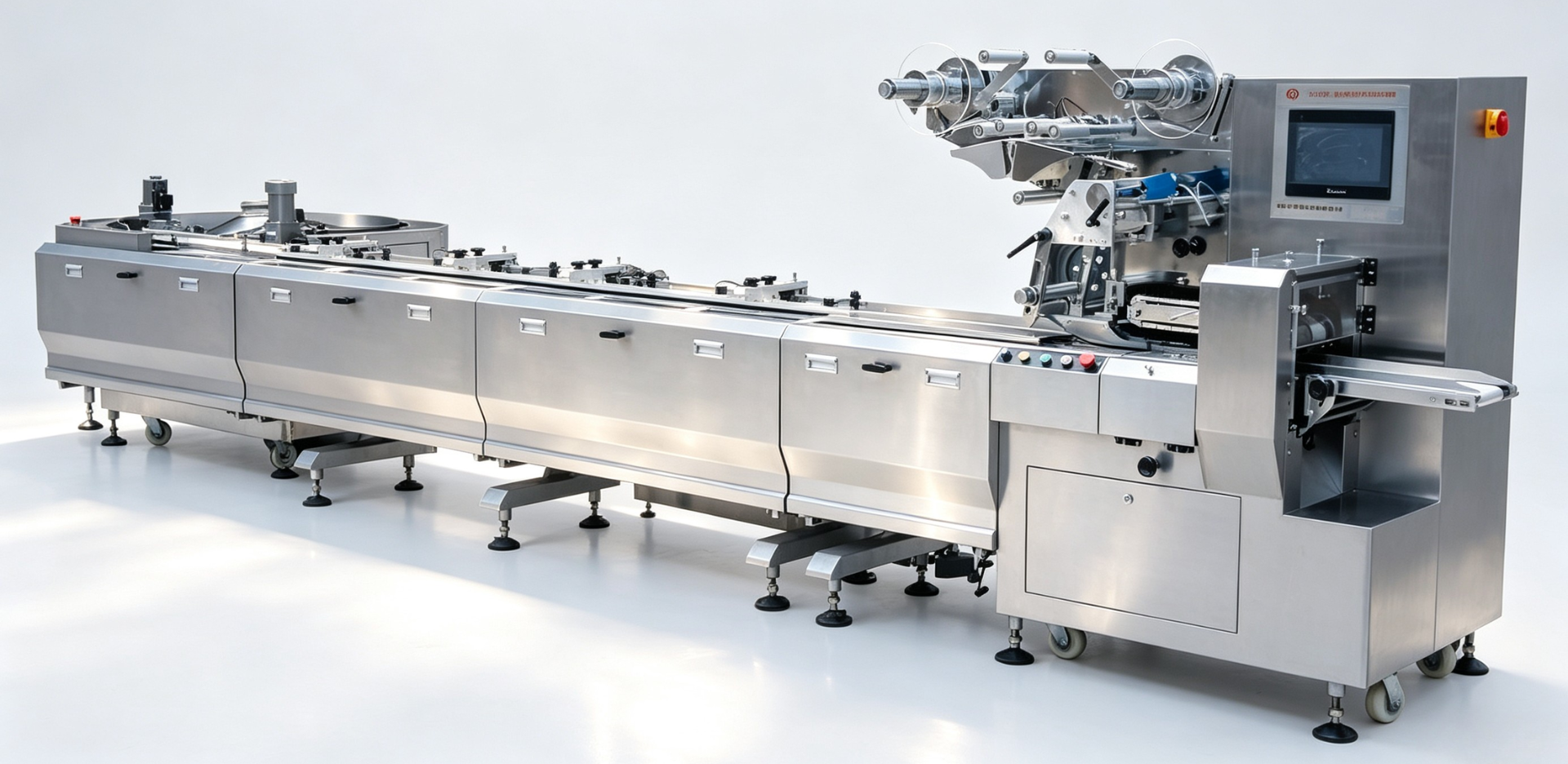

Machine picture:


Key Features
1. Automatic Plate Feeding System with Chain Transmission
The JY-L600 features a purpose-built automatic plate feeding system that serves as the critical interface between upstream production equipment and the packaging module.Products arriving from cooling tunnels,coating drums or forming lines are received onto precision-machined feeding plates that index in synchronization with the packaging cycle.
2. Nine Servo Motor Control Architecture
At the core of the JY-L600 is a distributed nine-servo control system that independently governs each critical motion axis of the packaging process.This architecture replaces traditional mechanical cam-and-linkage systems with fully programmable electronic motion profiles,delivering superior flexibility,repeatability and diagnostic capability.
3. Intelligent Film Handling with Automatic Splicing
The film handling subsystem of the JY-L600 is engineered for maximum productivity with a dual paper feed roller configuration supporting both A and B film rolls simultaneously.When the active roll approaches depletion,the automatic film splicing mechanism transfers the film path to the standby roll without stopping the machine,eliminating the downtime traditionally associated with roll changes.

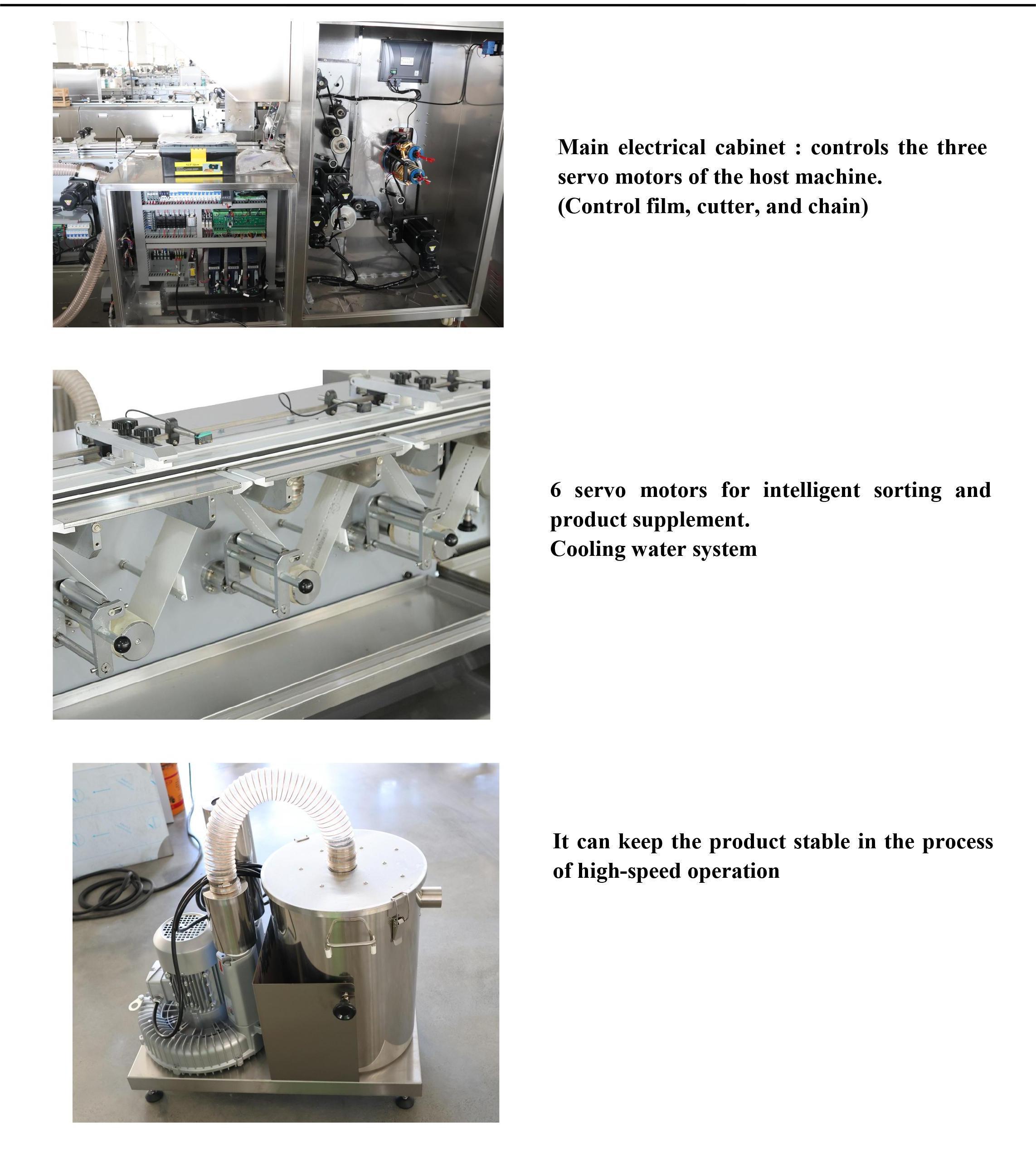

L600 日鼎新版Quotation-8.jpg

Applications

Candy and Confectionery: The primary application domain includes marshmallows of all sizes,cotton candy pieces, hocolate bars and tablets,nougat blocks,coated chocolate products,toffee,caramel candies, and hard candies.
Bakery Products: The JY-L600 reliably packages biscuits,cookies,wafers,puff pastries,pine tower candy and other baked goods that require gentle handling to prevent product breakage.
Snack Foods: Extruded snacks,puffed corn products,rice crackers,coated peanuts and similar dry snack items benefit from the machine's high-speed capability and precise portion control.
Parameter Specification
Model JY-L600
Packing Speed 50-800 bags/min (varies by product size and film)
Finished Bag Size Length 15-200 mm x Width 15-60 mm x Height 5-30 mm
Voltage 380V, 50Hz, 3-phase (customizable to local standards)
Total Power 7.3 KW
Net Weight 1700 KGS
Frame Material Stainless Steel 201
Control System 9 servo motors, touch screen HMI
Sensors Photoelectric tracking, product presence detection
Film Splicing Automatic roll link, dual A/B roll configuration
Conveyor Belt Material Food-grade PU (all belts)
Longitudinal Sealing Tension principle, high-precision gear transmission, heating coils
Horizontal Sealing Upper/lower sealing jaws, heating tubes, servo transmission
Feeding Method Automatic plate feed, chain transmission

Manufacturing and Quality Assurance

Every JY-L600 Pillow Packing Machine is manufactured at Junyao's 13,000-square-meter production facility in the Taizhou Development Zone, Zhejiang Province. The facility houses CNC machining centers for precision component fabrication, laser cutting systems for sheet metal processing, and dedicated assembly lines where approximately 100 skilled technicians and engineers build, test, and commission each machine according to documented quality control procedures.
The JY-L600 carries CE certification, confirming compliance with European Union directives for machinery safety, electromagnetic compatibility, and electrical safety. Junyao's quality management system incorporates continuous improvement processes informed by field performance data collected from machines operating in more than 25 countries, ensuring that each successive production batch benefits from the accumulated experience of the installed base.

After-Sales & Warranty

  • 12-month warranty
  • On-site installation and training
  • 48-hour spare parts dispatch
  • Remote technical support in multiple languages

Company Profile(5cdbc84fe4).jpg



Q: What is the minimum order quantity for the JY-L600 pillow packing machine?
The standard minimum order quantity is 1 unit. Junyao supports both single-machine purchases and multi-unit production line configurations. For customers ordering multiple units or complete packaging lines, we offer volume-based pricing adjustments and coordinated production scheduling to ensure all equipment is delivered in a single shipment when required.
Q: What is the typical production lead time for the cotton candy packaging machine?
Standard lead time is 30-45 working days from order confirmation and receipt of deposit.Orders requiring custom voltage configurations (e.g., 220V/60Hz for North America, 415V/50Hz for certain Asian markets) or non-standard bag size tooling may require an additional 5-10 working days. Expedited production is available for urgent requirements subject to current production schedule capacity — please consult our sales team for current availability.
Q: Can the JY-L600 packaging machine be customized for specific product dimensions or film materials?
Absolutely.Bag size ranges, feeding plate dimensions, sealing jaw configurations, and film width settings can all be tailored to your specific product requirements. Voltage and frequency are fully configurable to match local electrical standards anywhere in the world. During the quotation process, our engineering team reviews your product samples and packaging material specifications to recommend the optimal machine configuration.
Q: What after-sales support and warranty does Junyao provide?
Junyao provides a comprehensive 12-month warranty covering all non-consumable mechanical and electrical components from the date of shipment. Our after-sales support program includes remote diagnostic assistance via video call for troubleshooting and operational guidance, on-site installation supervision and operator training conducted by Junyao field service engineers (international travel and local accommodation costs are the customer's responsibility), and lifetime technical consultation for operational questions, maintenance planning, and production optimization.
