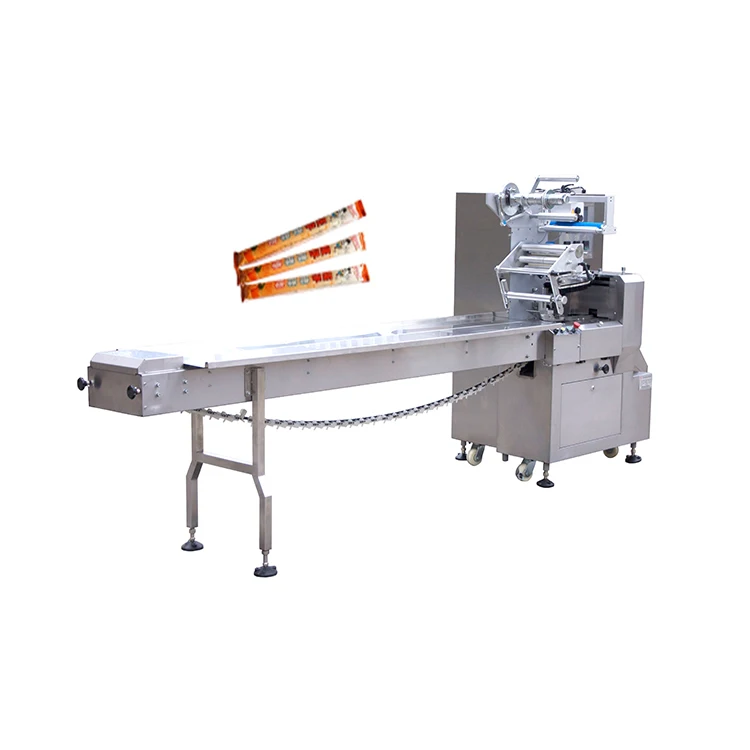

Horizontal Automatic Feeding and Flow Wrapping Machine

Horizontal Automatic Feeding and Flow Wrapping Machine is a fully integrated system designed for high-volume production, where the process of getting products into the packaging machine is entirely automated. The entire line consists of two major components working in perfect sync.

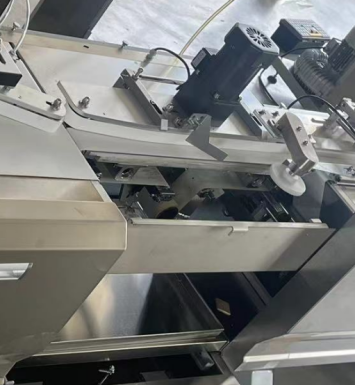

-Automatic Feeding System

This is the "loading" and "organizing" part of the line. Its primary job is to take a bulk, disorganized supply of products and deliver them to the flow packer in a precise, orderly, and continuous stream.

-Flow Packing Machine

This is the "wrapping" part of the line. It creates a sealed, flexible pouch around each individual product in a continuous, fluid motion.

Drawing

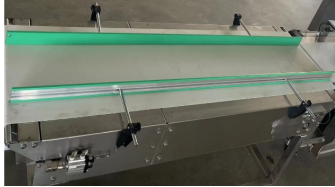

1.5M belt conveyor for chocolate storage area

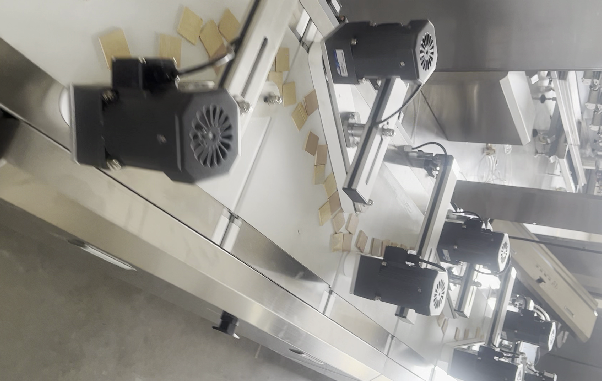

Feeding part-Feeding chocolate to a straight line

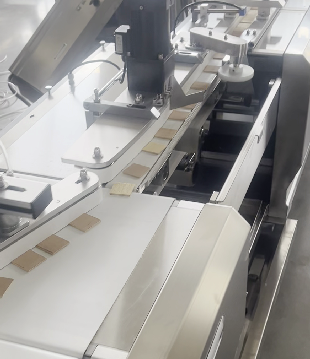

Bridge Part- reject chocolate which not in a line

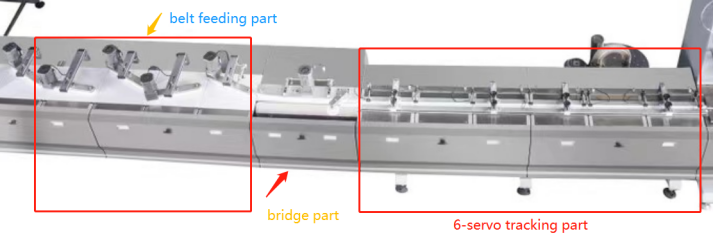

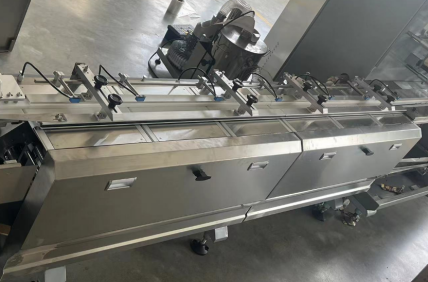

6 servo tracking part

with 6 section of belt conveyor control by 6 separately servo motor and driver, should be 100% make sure chocolate one by one conveyor to the chain lugs and no empty

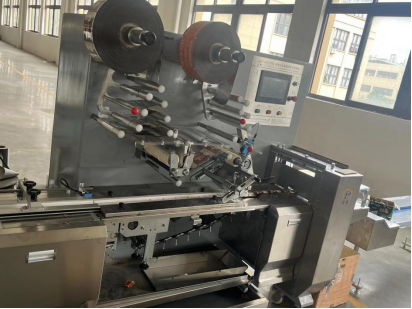

Machine Head part- chocolate package part. Control by 3 servo motor and driver, for chain conveyor,film conveyor and bag knife cutting

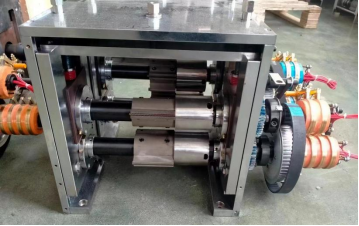

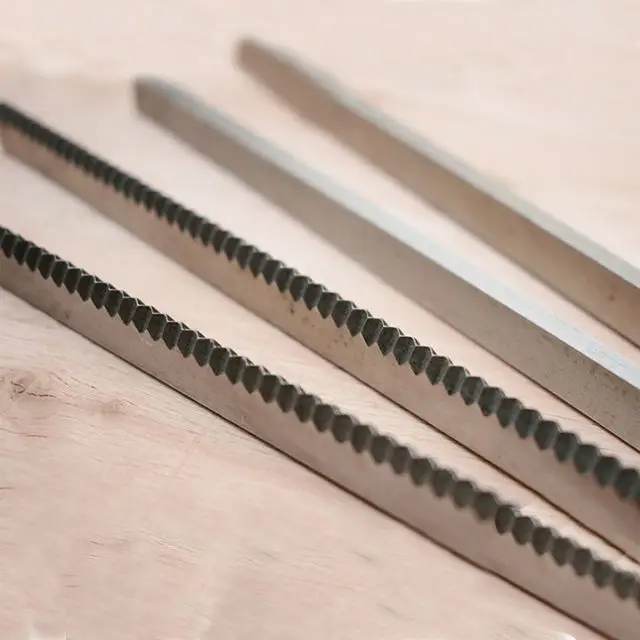

Knife holder - 3 side seal
