Professional double twist wrapping machine for candy, chocolate, and nougat. Traditional twist-wrap finish, CE certified, food-grade stainless steel. Ideal for premium confectionery presentation
Double twist wrapping — the classic candy packaging style with twisted film ends on both sides of the product — remains the preferred format for premium confectionery, traditional sweets, and products where packaging style drives perceived value. Unlike pillow packs that hide the product, a double twist wrap partially reveals the candy through transparent film, creating a handcrafted, artisanal appearance that commands higher retail prices.

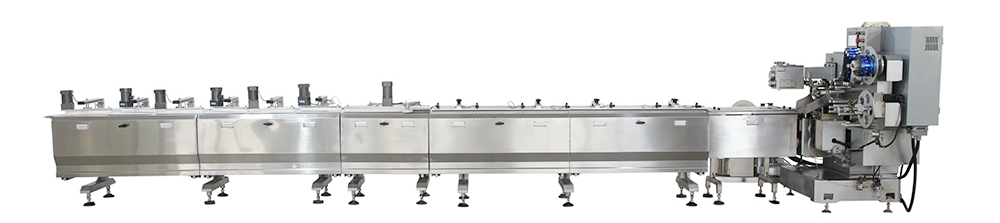

The Junyao double twist packing machine automates this traditionally labor-intensive process. It handles round, oval, and rectangular candies, chocolates, and nougat pieces, producing consistent, tight twist wraps at production speeds that would require dozens of manual workers. The machine's twist mechanism is adjustable for different twist tightness and film tail lengths, allowing you to match the packaging style to your brand positioning.
1. Consistent twist quality at production speed. The mechanical twist grippers are precision-machined and servo-controlled, maintaining consistent twist tightness across thousands of pieces. Unlike pneumatic systems that can drift with air pressure fluctuations, the servo-driven twist heads deliver repeatable results hour after hour.
2. Gentle product handling. Candies and chocolates are transferred through the wrapping cycle without impact. The twist motion is controlled — the film ends are gathered and twisted, not pulled or stretched.
3. Film versatility. Compatible with cellulose film, wax paper, PVC twist film, and laminated twist films. The twist tightness and tail length are adjustable through the HMI for different film materials and product sizes.
4. Quick size changeover. Change parts — product pockets, twist heads, film feed guides — are tool-free quick-change designs. Format changes between product sizes take under 15 minutes.
5. Food-grade construction. 304 stainless steel on all product and film contact surfaces. CE certified.
| Parameter | Specification |
| Model | JY-LS800 |
| Packaging Speed | 50 – 400 bags per minute |
| Packaging Rate | 100% under normal operating conditions |
| Package Size Range (L×W×H) | 12–42 × 15–30 × 6–25 mm |
| Wrapping Type | Double twist wrap, inner + outer film |
| Inner Film Specifications | Wax paper, aluminum foil laminate, 15–25 micron |
| Outer Film Specifications | Printed BOPP, metallized film, 20–35 micron |
| Power Supply | 380V / 50Hz, 3-phase (customizable) |
| Power Consumption | 8.5 KW |
| Drive System | Full servo — independent axes for inner film feed/cut, outer film feed/cut, product infeed, inner wrap form/twist, outer wrap form/twist, inspection/reject |
| Servo Positional Accuracy | ±0.2 mm per axis |
| Twist Tension Control | Servo torque feedback with adaptive compensation per cycle |
| Inspection System | Multi-point optical inspection for product and wrap quality |
| Feeding System | Large-capacity hopper with vibratory and rotary singulation |
| Noise Level | ≤ 75 dBA at operator position |
| Service Life (Drive Components) | > 20,000 operating hours |
| Machine Weight | 2,800 KG |
| Machine Dimensions (L×W×H) | 6,348 × 1,638 × 1,600 mm |
| Frame Material | Heavy-gauge 304 stainless steel, reinforced base |
| Electrical Enclosure Rating | IP54 with forced-air cooling for servo drives |
| Control System | PLC + 10-inch color HMI touch screen |
| Product Recipe Storage | Up to 100 presets including inner/outer film and twist parameters |
| Language Support | English, Chinese, Spanish, French, Arabic, Russian |
| Certification | CE |
| Optional Features | Date coder, automatic film roll changeover, remote access module, product counting and batching system, additional wrapping stations, extended hopper capacity, film registration mark sensor for printed outer film |
